Cast Link Belt

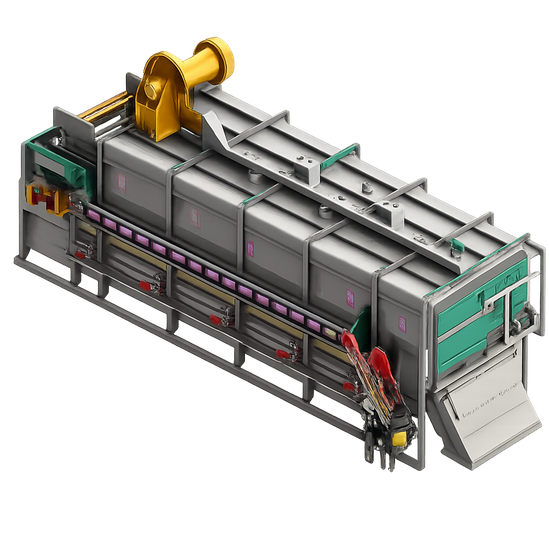

AFC-Holcroft Cast Link Belt Continuous Furnace – heavy‐duty high‐throughput conveyor heat-treat system
Product details
- Throughput Capacity2,000 – 10,000 lb/hour (907 – 4,536 kg/h)
- Preheat & Loading SystemIntegrated PyroKleen™ pre-wash/preheat with GapMiser™ soft-handling loader
- Conveyor System Tension-free cast-link belt for heavy loads and wide components
- Quench System OptionsOil, water, polymer, caustic, or salt with advanced agitation (Upflow / Uniflow)
- Automation & ControlBeltMaster™ computerized furnace management system
Continuous cast-link belt technology for rugged loads and scale production
AFC-Holcroft’s Cast Link Belt system bridges the gap between standard conveyor lines and bespoke heavy-load cells. Built with tension-free drive mechanics to handle large or irregular part geometries, soft-handling loaders to minimize damage, and complete quench media flexibility — this system delivers robust continuous processing capability with industrial-grade reliability.
Technical features at a glance:
Heavy-duty cast link belt conveyor capable of 2,000-10,000 lb/hour throughput
Integrated PyroKleen™ pre-wash/pre-heat system and GapMiser™ soft loader to feed parts gently and continuously
Tension-free belt drive mechanism – no take-up spools – designed for large or heavy parts and irregular spacing
Modular design allows scalability and customization of heating, soak, quench and cooling zones
Air-cooled atmosphere circulation fans and sealed atmosphere construction for consistent thermal/atmosphere control
Full automation via BeltMaster™ control system for complete traceability, recipe control and process monitoring
Multiple quench media supported (oil, water, polymer, caustic, salt) with up-flow or uniflow agitation options
Key Benefits on Your Operations
High throughput, large‐part capability
Specifically configured for loads too big or heavy for standard mesh belt systems, allowing continuous production at 2,000-10,000 lb/hour.
Part-friendly handling
Soft-handling loaders and tension-free belt drive allow large or irregular parts to be processed without damage or orientation issues.
Flexible metallurgical processing
Support for major heat-treat routes (hardening, annealing, carburizing), plus multiple quench media options, gives the system broad capability.
Manufacturing efficiency
Modular design and automation reduce operator intervention, integrate easily into production flow, and deliver excellent uptime.
Durable design, low maintenance
Heavy-duty conveyor components, no take-ups, and heavy industrial build reduce service frequency and prolong component life.
Cast Link Belt System Specifications
The following table shows available system sizes and throughput data for the Cast Link Belt System.
| | Load Type | Belt Design Features |
|---|---|---|
| ~2,000 lb/hour (~907 kg/h) | Castings / large forgings | Narrower cast-link belt, standard soft loader |
| ~10,000 lb/hour (~4,536 kg/h) | Heavy-duty large-part production | Wide cast-link belt, tension-free drive, large soft-loader, full automation |
Reliable service throughout your entire system lifecycle
We support our customers throughout the entire lifecycle of their systems – from commissioning to ongoing operation, modernization and digital integration.
