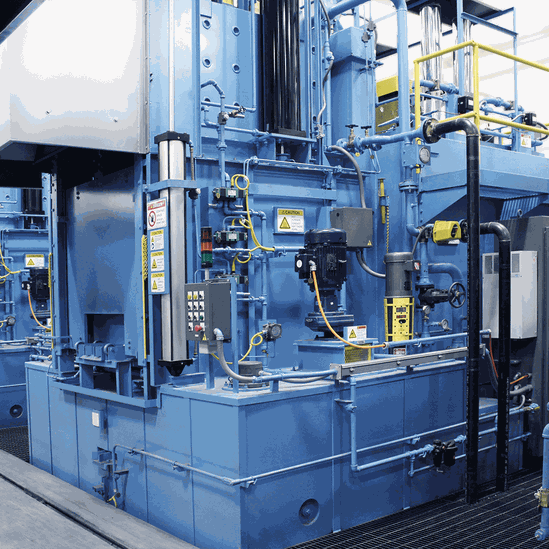

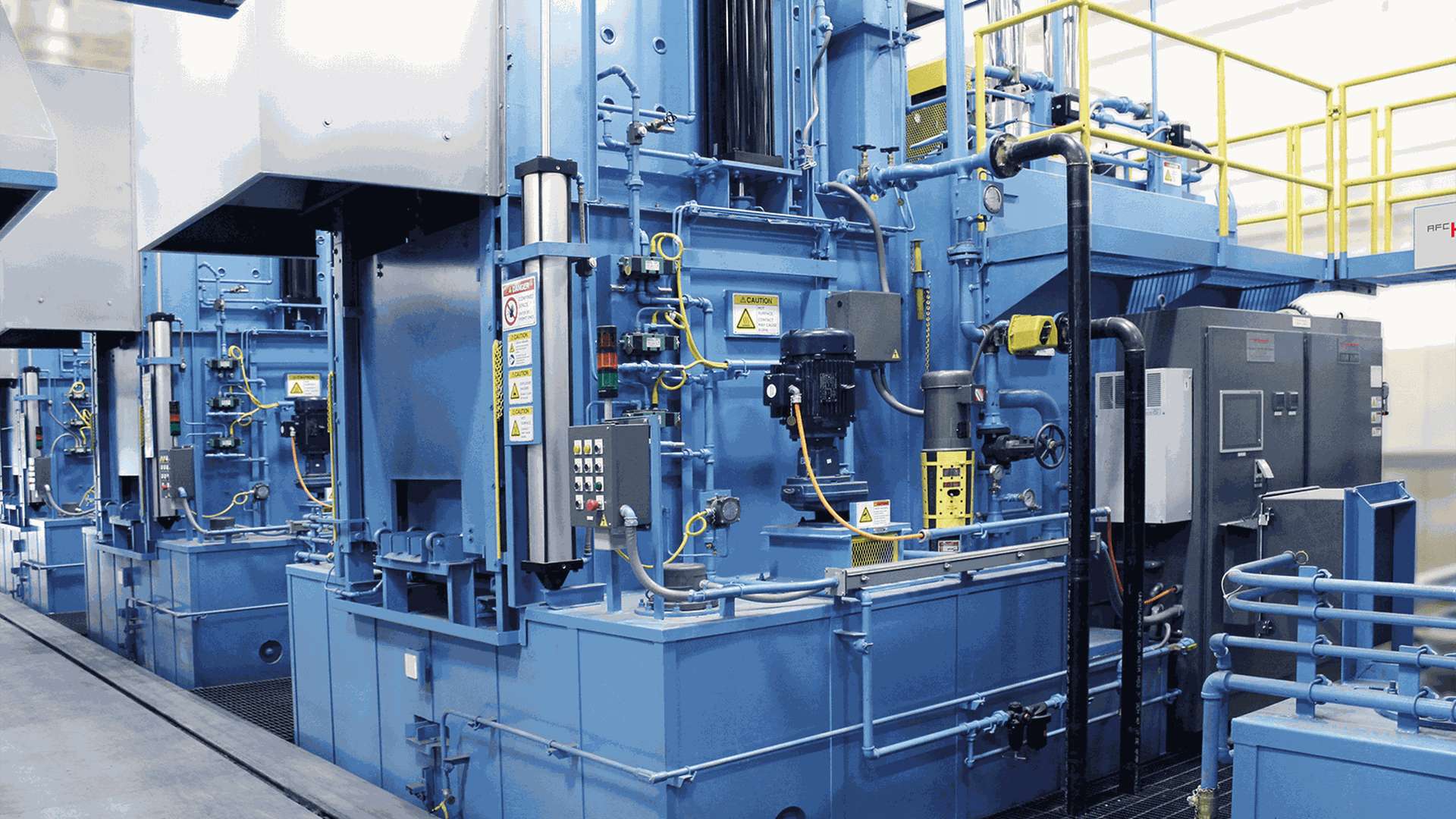

Universal Batch Quench Furnace
AFC-Holcroft universal batch quench furnace – flexible, high-capacity heat treatment
Product details
- Operating temperature range790 – 955 °C (1450 – 1750 °F), max. 1100 °C (2000 °F)
- Typical gross load capacityup to 6,000 lbs (2,721 kg)
- Quench mediaoil, salt, water, polymer
- Quench Agitation SystemUpflow patented quench agitation
- Loading SystemDouble-deck elevator loading for reduced load cycle time
Universal batch quench furnace for industrial-scale heat treatment
The AFC-Holcroft universal batch quench furnace delivers best-in-class flexibility for high-volume heat treatment production — supporting carburizing, carbonitriding, ferritic nitrocarburizing, neutral hardening, normalizing, and annealing under controlled atmosphere. Designed for repeatability, optimized energy use, and high uptime.
Technical features at a glance:
Up to ~1 gallon of quenchant per pound of load for ideal quench severity.
High/low endo flow and multiple agitation speeds.
Largest quench tank capacity in class.
Double-deck elevator for minimized reload times.
Gas-fired or electric bayonet heating options.
Compact quench tank footprint — ideal for space-constrained layouts.
Key Benefits for Your Operation
High throughput & productivity
Large burner input and chamber geometry designed for faster time-to-temperature.
Superior quenching uniformity
Patented upflow agitation delivers uniform quench severity and controlled media temperature rise.
Flexible integration
Fully compatible with automated cells, transfer cars, flex lines, and companion furnaces.
Lower service burden
Modular plug-type construction — easier access, faster maintenance, lower downtime.
Advanced digital control
BatchMaster™ HMI with continuous data capture and trending for process reliability & traceability.
Universal Batch Quench Furnace
The following table outlines available sizes and load capacity data for Universal Batch Quench furnaces.
Reliable service throughout your entire system lifecycle
We support our customers throughout the entire lifecycle of their systems – from commissioning to ongoing operation, modernization and digital integration.
FAQ – AFC-Holcroft UBQ
Connect With Our Team - Talk to an AFC-Holcroft Specialist
Get guidance on equipment selection, process requirements, upgrades, or technical support for your application.
